Amarr 2743 Polyurethane Insulated Commercial Door
At 3″ thick, the Polyurethane Insulated Amarr 2743 delivers maximum R-Value for buildings where premium energy efficiency and performance are requirements. This Super-Duty top-of-the-line high R-value door is constructed using 27-gauge exterior steel and foamed-in-place polyurethane insulation with a superior energy-efficient R-value of 28. It comes with a 10-year warranty and has a max standard. width f 40′ 2″ and a max standard. height of 26′ 1″.
Amarr 2743 Polyurethane Insulated
High R-Value Doors to Meet All Your Needs
Amarr polyurethane insulated products are our top-of-the-line energy-efficient doors; constructed using CFC-free polyurethane insulation to create a strong monolithic panel. Heavy-duty 14-gauge minimum galvanized steel hinges standard.
Amarr 2743 Features & Options
Rapid Install Artificial Lift:
Designed specifically for commercial warehouse and dock doors and saves approximately 20 minutes of installation time per door due to fewer jamb attachments and a pre-assembled, one-piece track. Available for door sizes up to 9’4″x10′.
Track: All Amarr doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Rapid Install Vertical Lift, Low Headroom, and Follow the Roof Pitch
Springs: Torsion springs are oil tempered, helical wound, and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available for up to 100,000 cycles.
Hardware: Galvanized steel hinges and track brackets. All rollers have a minimum of 10-ball bearings.
Maximum Door Size: 40′ 2″ W x 26′ 1″ H
Steel Thickness: 27 ga
Maximum R-Value
Our polyurethane insulation provides the best R-values per inch compared to other common types of sectional door insulation.
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP), and comply with environmental laws and regulations.
Color / Finishes
True White
Commercial Gray
Sandstone
Brown
Amarr’s Color Zone
Amarr’s Color Zone is a factory-applied option on most steel garage doors. For the commercial market, Amarr Color Zone creates a unique lasting first impression on our wide selection of industrial doors.
Panel & Glass Options
24″ x 8″ insulated
Tempered Insulated with Black frame.
24″ x 12″ insulated
Available with either a White or Black frame.
Door Construction
Steel + Insulation + Steel
- Steel Exterior
- Polyurethane Insulation
- Steel Interior
- Interior Hinge Reinforcement
- Bottom Weather Seal
Construction:
- R-Value*: 28.0
- 3” thick
- 27-gauge steel front
- 27-gauge steel interior panel
- 20-gauge continuous strip hinge reinforcement
- Available with Rapid Install
- 10-Year Limited Warranty

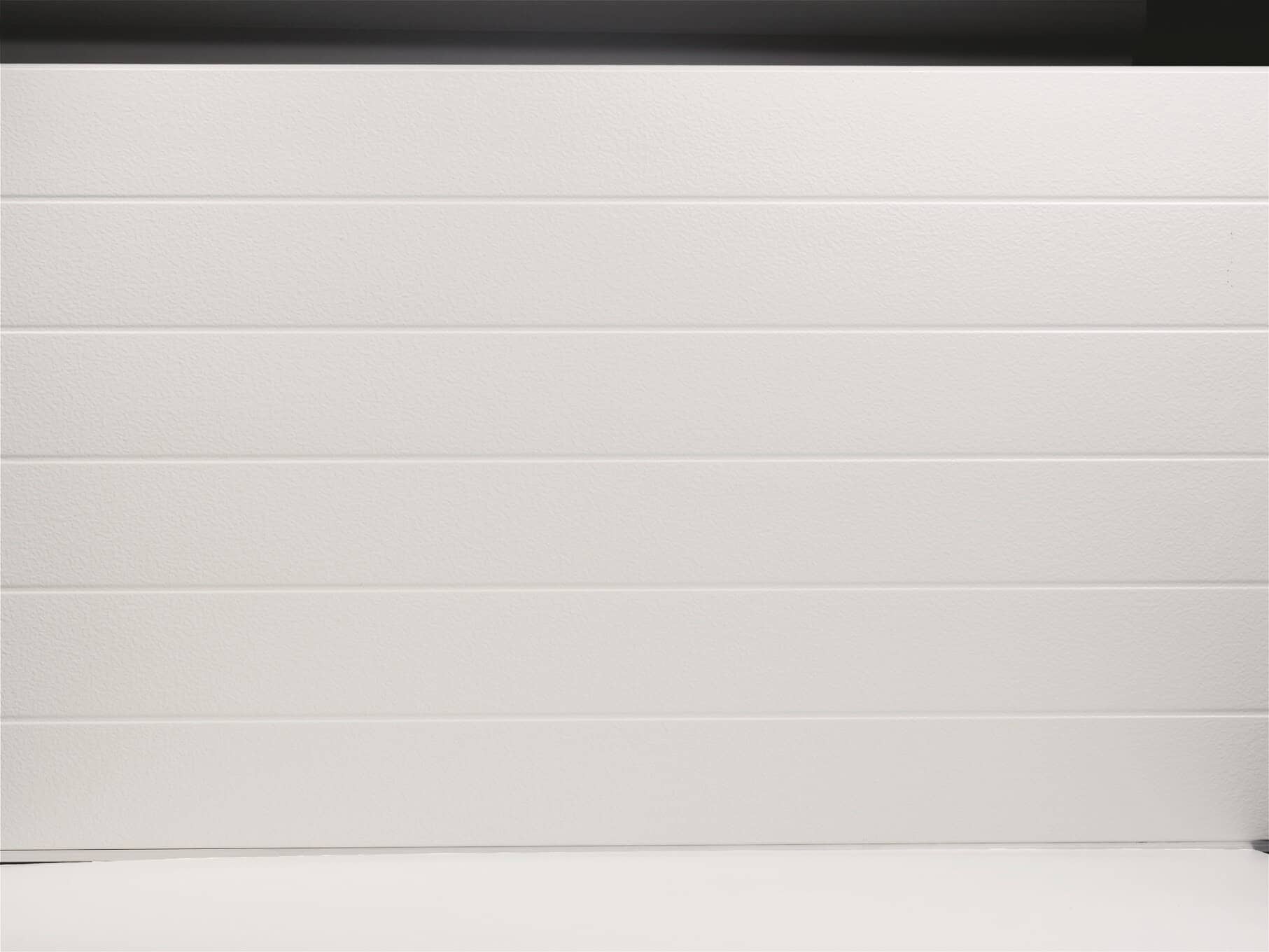

Section Profile: Pencil Groove
Specifications |
Amarr 2743 |
|---|---|
| R-Value | 28.0 |
| Steel Thickness | 27 ga |
| Panel Design | Pencil Groove |
| Steel Embossment | Stucco |
| Construction Layers | Three |
| Max Std Width | 40’2″ |
| Max Std Height | 26’1″ |
| Door Thickness | 3″ (7.6cm) |
| U-Value | 0.036 |
Available with Rapid Install
The Rapid Install system for Amarr’s Vertical Lift doors is designed specifically for commercial sectional doors, saving approximately 20 minutes of installation time per door.
Simplified Track & Hardware
- Heavy .063 gauge 1-piece 2″ and 3″ vertical track
- Preassembled end-bearing plate
- Self-lubricating nylon rollers
- Widebody hinges
- Optional keyed hollow shaft
Reduced Installation Time
- Engineered for one-man installation
- Fewer trips up the wall
- Fewer components to assemble
- 10 fewer wall attachments
Brochures
Energy Efficient Polyurethane Insulated Brochure – Download pdf
Warranty
Commercial Sectional Warranty – Download pdf
