Amarr 2747 Polyurethane Insulated Commercial Door
The Polyurethane Insulated Amarr 2747 is the ideal replacement section. the 1-5/8″ section profile with similar exterior and interior groove design is compatible with many competitive sections. Because the section weights are comparable to competitive sections, no spring change is required.
Amarr 2747 Polyurethane Insulated
High R-Value Doors to Meet All Your Needs
The Polyurethane Insulated Amarr 2747 is 1-5/8″ thick with a wide groove exterior design that’s versatile and compatible with other manufacturers’ shiplap doors.
Amarr 2747 Features & Options
Rapid Install Artificial Lift:
Designed specifically for commercial warehouse and dock doors and saves approximately 20 minutes of installation time per door due to fewer jamb attachments and a pre-assembled, one-piece track. Available for door sizes up to 9’4″x10′.
Track: All Amarr doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Rapid Install Vertical Lift, Low Headroom, and Follow the Roof Pitch
Springs: Torsion springs are oil tempered, helical wound, and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available for up to 100,000 cycles.
Hardware: Galvanized steel hinges and track brackets. All rollers have a minimum of 10-ball bearings.
Maximum Door Size: 24′ 2″ W x 26′ 1″ H
Steel Thickness: 27 ga
Shiplap Profile Design:
Repair any 1-5/8″ shiplap door with the versatile Amarr 2747 high R-value polyurethane section.
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP), and comply with environmental laws and regulations.
Color / Finishes
True White
Commercial Gray
Sandstone
Brown
Amarr’s Color Zone
Amarr’s Color Zone is a factory-applied option on most steel garage doors. For the commercial market, Amarr Color Zone creates a unique lasting first impression on our wide selection of industrial doors.
Panel & Glass Options
24″ x 8″ insulated
Tempered Insulated with Black frame.
26″ x 13″ insulated
Double Insulated Acrylic Windows with Black frame.
Door Construction
Steel + Insulation + Steel
- Steel Exterior
- Polyurethane Insulation
- Steel Interior
- Interior Hinge Reinforcement
- Bottom Weather Seal
Construction:
- R-Value*: 15.1
- 1-5/8″ thick
- 27-gauge steel front
- 29-gauge steel interior panel
- 20-gauge continuous strip hinge reinforcement
- Available with Rapid Install
- Shiplap profile compatible with doors from other manufacturers
- Section weights are comparable to competitor products so no spring changes required
- 10-Year Limited Warranty

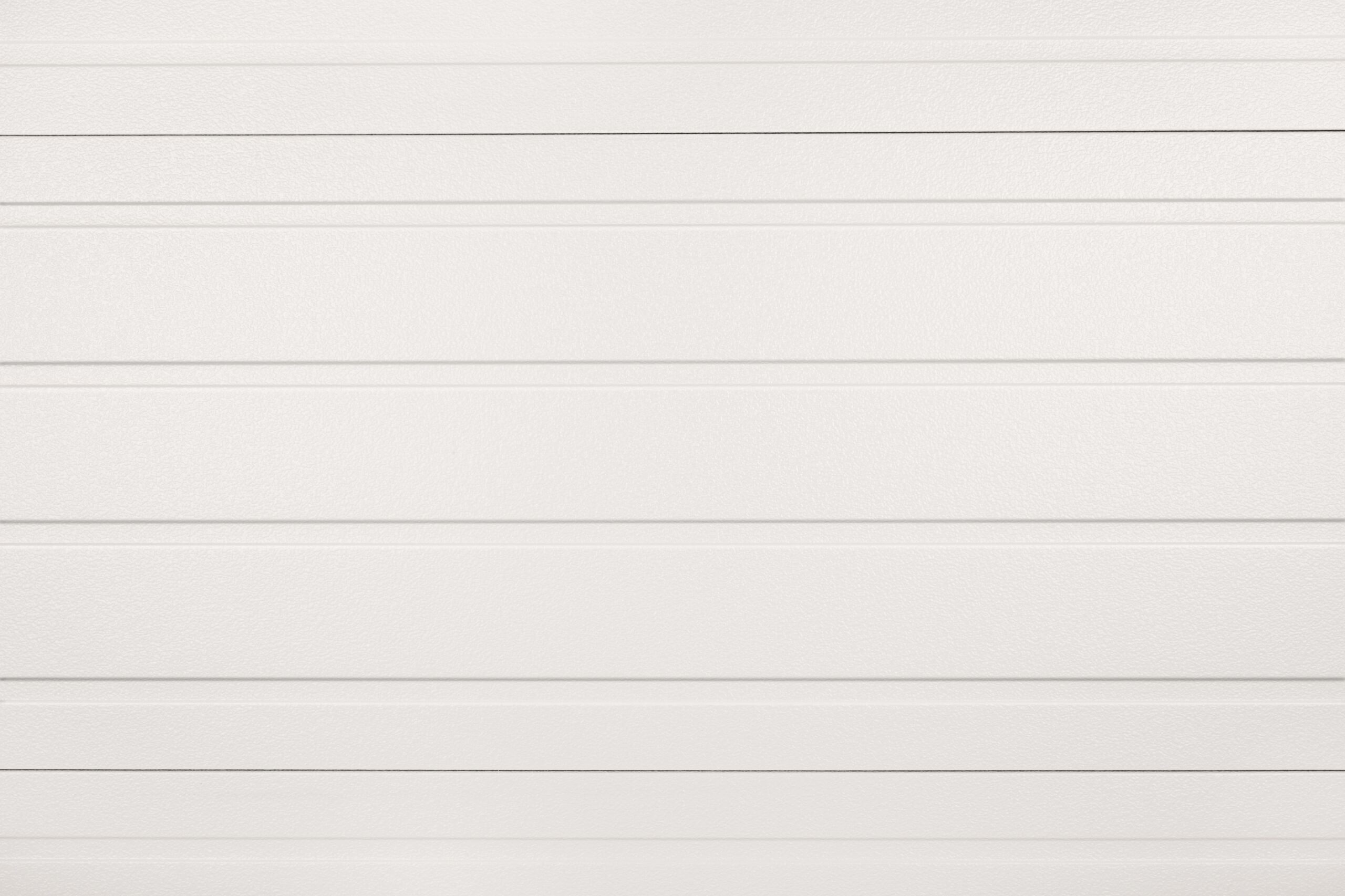

Section Profile: Wide Groove
Specifications |
Amarr 2741 |
|---|---|
| R-Value | 15.0 |
| Steel Thickness | 27 ga |
| Panel Design | Wide Groove |
| Steel Embossment | Stucco |
| Construction Layers | Three |
| Max Std Width | 24’2″ |
| Max Std Height | 26’1″ |
| Door Thickness | 1-5/8″ |
| U-Value | 0.066 |
Available with Rapid Install
The Rapid Install system for Amarr’s Vertical Lift doors is designed specifically for commercial sectional doors, saving approximately 20 minutes of installation time per door.
Simplified Track & Hardware
- Heavy .063 gauge 1-piece 2″ and 3″ vertical track
- Preassembled end bearing plate
- Self-lubricating nylon rollers
- Widebody hinges
- Optional keyed hollow shaft
Reduced Installation Time
- Engineered for one-man installation
- Fewer trips up the wall
- Fewer components to assemble
- 10 fewer wall attachments
Brochures
Energy Efficient Polyurethane Insulated Brochure – Download pdf
Warranty
Commercial Sectional Warranty – Download pdf
