LiftMaster Commercial Door and Gate Operators

LiftMaster Commercial Operators feature our most advanced features including MyQ® Technology and Security+ 2.0® to help you keep your facility running smoothly and safely at all times. LiftMaster has created commercial automation system solutions specifically for you.

LiftMaster Commercial Operators

LiftMaster’s ® Custom Solutions are integrated packages, assuring seamless integration of a motorized Commercial Door System. The combination of advanced technology, features, and accessories provided by LiftMaster simplifies the best solution for your specific automatic door operator application.

More Models Are Available; Please Call Us

Stay Connected and In Control of Your Door No Matter Where You Are.

Jackshaft Operators

LiftMaster Commercial Operators, Spectrum Facility Solutions, AZ

MJ

Medium-Duty Jackshaft Operator

For use on smaller, lighter commercial doors with mid-range duty-cycle requirements.

Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day.

Floor level disconnect disengages operator manual lifting in an emergency.

Wall mount for high or vertical lift sectional doors or small rolling doors and grilles.

Features

Business Safety and Security

Security+®

Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.

Commercial Power

115 Volts – 1/2 HP, 115V single-phase motor
NEC Class – 24V NEC Class 2 control circuit

What's Included & Accessories

What’s Included

02103 – 3-Button Station

CPS-U – Commercial Photo Eyes

Commercial Accessories

Single Button Control

Single button control provides an additional input for single-button control functionality. Required for installation of any external radio receiver.

Auxiliary Limit Switches

Auxiliary limit switches provide additional limit switches with dry form C contacts at the open and closed door positions to control lights, heaters, and dock levelers.

Interlock Switch

The interlock switch disables the operator control circuit when the door is locked, preventing damage to the door and operator.

H

Hoist Operator

Optimal for industrial applications with larger sectional overhead doors.

Rated duty cycle: 25 per hour; Up to 90 cycles per day.

Side mounts to the wall for vertical or high-lift doors.

Rolling doors and grilles. Wall or hood mounts.

Features

Business Connectivity

Monitor and Control

myQ Smart Facility Access is a cloud-based software solution that delivers real-time data and analytics to a commercial facility.

myQ Dock Management

Analyze the load, turn and dwell time at each dock in the facility and make data-driven decisions that allow you to maintain insight from the perimeter to the dock space.

Real-time Alerts

Stay up-to-date and in control of facility access points with real-time notifications to help improve efficiency and productivity while reducing expenses.

Business Safety and Security

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.

Security+ 2.0®

Safeguard facility access with Security + 2.0 technology, opening for registered devices only.

Commercial Power

Multiple Power Options

Available in 1/3, 1/2, 3/4, and 1 HP

Dual Voltage Connections

Single-phase: 115V and 230V
3-phase: 208V, 230V and 460V
Discrete model: 575V

Customizable Voltage

To meet job requirements

What's Included & Accessories

What’s Included

02-103L – 3-Button Indoor Surface Mount Station (NEMA 1)

CPS-U – Commercial Photo Eyes

Commercial Accessories

RGL24LY – Red/Green Traffic Light

Dramatically reduces the chance of damage to your door and engine.
The light will change from flashing Red to solid Green when the door reaches the fully open position, indicating when it is clear to exit.

819LMB – myQ® Home Bridge

Add smartphone control to myQ-enabled products that don’t have built-in Wi-Fi.
Works with Apple® HomeKit™ and Siri® voice control.

LC-36A – Light Curtain

Provides up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe.
Eight LEDs per side and 22 cross-beams produce an invisible infrared light curtain for maximum detection capability.

813LM – Encrypted DIP Three-Button Remote Control

Programmable for Open/Close/Stop Operation.
Gives you a greater connection range.
Features Security+ 2.0® technology.

CPS-OPEN4 – Monitored Dual-Sided Photo Eyes

Flexible housing protects against direct water spray and corrosion.
Dual-Sided infrared sensors.
Meets UL 325 Safety Standards.

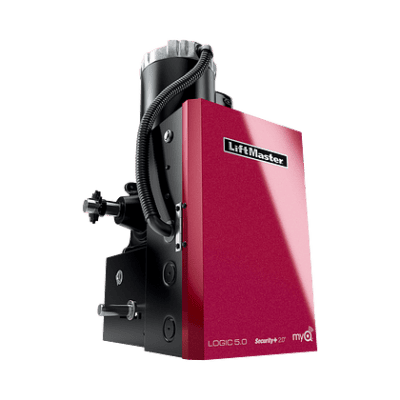

GH

Gearhead Hoist Operator

For use on heavy industrial, high-cycle doors. Lubricated gear system and numerous custom modifications.

Rated duty cycle: 25 per hour; Greater than 90 cycles per day.

Larger/heavier sectional overhead doors. Side mounts to the wall for vertical or high-lift doors.

Larger/heavier rolling door and grilles.

Features

Business Connectivity

Monitor and Control

myQ Smart Facility Access is a cloud-based software solution that delivers real-time data and analytics to a commercial facility.

myQ Dock Management

Analyze the load, turn and dwell time at each dock in the facility and make data-driven decisions that allow you to maintain insight from the perimeter to the dock space.

Real-time Alerts

Stay up-to-date and in control of facility access points with real-time notifications to help improve efficiency and productivity while reducing expenses.

Business Safety and Security

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.

Security+ 2.0®

Safeguard facility access with Security + 2.0 technology, opening for registered devices only.

Commercial Power

Multiple Power Options

Available in 1/2, 3/4, 1, 1-1/2, 2 and 3 HP

Dual Voltage Connections

Single-phase: 115V and 230V
3-phase: 208V, 230V and 460V
Discrete model: 575V

Customizable Voltage

To meet job requirements

What's Included & Accessories

What’s Included

02-103L – 3-Button Indoor Surface Mount Station (NEMA 1)

CPS-U – Commercial Photo Eyes

Commercial Accessories

RGL24LY – Red/Green Traffic Light

Dramatically reduces the chance of damage to your door and engine.
The light will change from flashing Red to solid Green when the door reaches the fully open position, indicating when it is clear to exit.

819LMB – myQ® Home Bridge

Add smartphone control to myQ-enabled products that don’t have built-in Wi-Fi.
Works with Apple® HomeKit™ and Siri® voice control.

LC-36A – Light Curtain

Provides up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe.
Eight LEDs per side and 22 cross-beams produce an invisible infrared light curtain for maximum detection capability.

813LM – Encrypted DIP Three-Button Remote Control

Programmable for Open/Close/Stop Operation.
Gives you a greater connection range.
Features Security+ 2.0® technology.

CPS-OPEN4 – Monitored Dual-Sided Photo Eyes

Flexible housing protects against direct water spray and corrosion.
Dual-Sided infrared sensors.
Meets UL 325 Safety Standards.

Trolley Operators

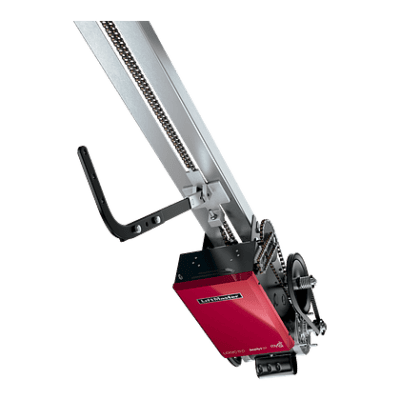

T

Trolley Operator

For use on standard-lift sectional overhead doors.

Rated duty cycle: 25 per hour; Up to 90 cycles per day.

Suspends from the ceiling. Directly attaches to drive and controls the door.

Features

Business Connectivity

Monitor and Control

myQ Smart Facility Access is a cloud-based software solution that delivers real-time data and analytics to a commercial facility.

myQ Dock Management

Analyze the load, turn and dwell time at each dock in the facility and make data-driven decisions that allow you to maintain insight from the perimeter to the dock space.

Real-time Alerts

Stay up-to-date and in control of facility access points with real-time notifications to help improve efficiency and productivity while reducing expenses.

Business Safety and Security

Security+ 2.0®

Safeguard facility access with Security + 2.0 technology, opening for registered devices only.

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.

Commercial Power

Multiple Power Options

Available in 1/2, 3/4, 1, 1-1/2, 2, and 3 HP

Dual Voltage Connections

Single-phase: 115V and 230V
3-phase: 208V, 230V and 460V
Discrete model: 575V

Customizable Voltage

To meet job requirements

What's Included & Accessories

What’s Included

02-103L – 3-Button Indoor Surface Mount Station (NEMA 1)

CPS-U – Commercial Photo Eyes

Commercial Accessories

RGL24LY – Red/Green Traffic Light

Dramatically reduces the chance of damage to your door and engine.
The light will change from flashing Red to solid Green when the door reaches the fully open position, indicating when it is clear to exit.

819LMB – myQ® Home Bridge

Add smartphone control to myQ-enabled products that don’t have built-in Wi-Fi.
Works with Apple® HomeKit™ and Siri® voice control.

LC-36A – Light Curtain

Provides up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe.
Eight LEDs per side and 22 cross-beams produce an invisible infrared light curtain for maximum detection capability.

813LM – Encrypted DIP Three-Button Remote Control

Programmable for Open/Close/Stop Operation.
Gives you a greater connection range.
Features Security+ 2.0® technology.

CPS-OPEN4 – Monitored Dual-Sided Photo Eyes

Flexible housing protects against direct water spray and corrosion.
Dual-Sided infrared sensors.
Meets UL 325 Safety Standards.

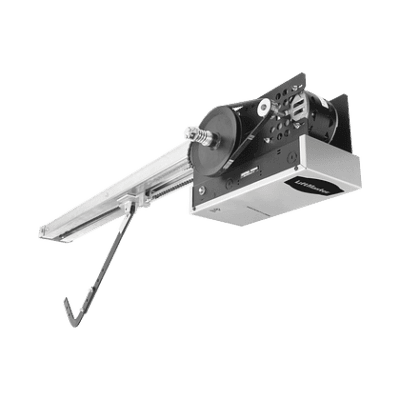

MT

Medium-Duty Trolley Operator

For use on standard-lift sectional overhead doors with mid-range duty-cycle requirements.

Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day.

Suspends from the ceiling directly attach and control a sectional door.

Trolley with disconnect disengages operator for manual lifting in an emergency.

Features

Business Safety and Security

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.

Security+ 2.0®

Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.

Commercial Power

115 Volts

1/2 HP, 115V single-phase motor

NEC Class

24V NEC Class 2 control circuit

Commercial Accessories

Single Button Control

Single button control provides an additional input for single-button control functionality. It is required for the installation of any external radio receiver.

Auxiliary Limit Switches

Auxiliary limit switches provide additional limit switches with dry form C contacts at the open and closed door positions to control lights, heaters, and dock levelers.

Interlock Switch

The interlock switch disables the operator control circuit when the door is locked, preventing damage to the door and operator.

What's Included & Accessories

What’s Included

02103 – 3-Button Station

CPS-U – Commercial Photo Eyes

Commercial Accessories

RGL24LY – Red/Green Traffic Light

Dramatically reduces the chance of damage to your door and engine.
The light will change from flashing Red to solid Green when the door reaches the fully open position, indicating when it is clear to exit.

333LM – 3-Button Open/Close/Stop Remote Control

Red, yellow and green actuators for easy identification.
Commercial operators require open, close, and stop functions or three-channel light control.
Easy code selection, 9-position DIP switches with 19,683 changeable codes per channel.

LC-36A – Light Curtain

Provides up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe.
Eight LEDs per side and 22 cross-beams produce an invisible infrared light curtain for maximum detection capability.

813LM – Encrypted DIP Three-Button Remote Control

Programmable for Open/Close/Stop Operation.
Gives you a greater connection range.
Features Security+ 2.0® technology.

CPS-OPEN4 – Monitored Dual-Sided Photo Eyes

Flexible housing protects against direct water spray and corrosion.
Dual-Sided infrared sensors.
Meets UL 325 Safety Standards.

KPW250 – Wireless Keypad

Perfect For Larger Commercial Applications Or Gated Entrance For Small businesses.
Flexible Setup For Multiple Users With 250 Permanent PINs And 10 Unique Temporary PINs.
Programs to All LiftMaster Gate and Door Operators.

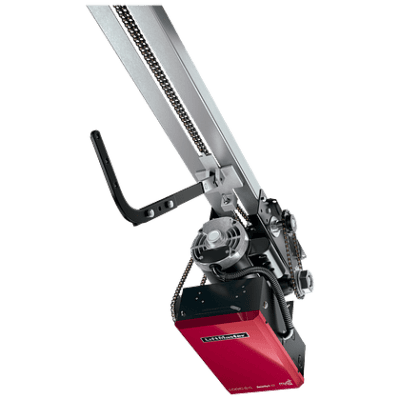

GT

Gearhead Trolley Operator – Logic 5.0

For use on heavy industrial, high cycle applications.

Lubricated gear system and numerous custom modifications.

Rated duty cycle: 25 per hour; Greater than 90 cycles per day.

Suspends from the ceiling. Directly attaches to drive and controls the door.

Sectional overhead doors.

Features

Business Connectivity

Monitor and Control

myQ Smart Facility Access is a cloud-based software solution that delivers real-time data and analytics to a commercial facility.

myQ Dock Management

Analyze the load, turn and dwell time at each dock in the facility and make data-driven decisions that allow you to maintain insight from the perimeter to the dock space.

Real-time Alerts

Stay up-to-date and in control of facility access points with real-time notifications to help improve efficiency and productivity while reducing expenses.

Business Safety and Security

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the fully open position.

Security+ 2.0®

Safeguard facility access with Security + 2.0 technology, opening for registered devices only.

Commercial Power

Multiple Power Options

Available in 1/2, 3/4, 1, 1-1/2, 2, and 3 HP

Dual Voltage Connections

Single-phase: 115V and 230V
3-phase: 208V, 230V and 460V
Discrete model: 575V

Customizable Voltage

To meet job requirements

What's Included & Accessories

What’s Included

02-103L – 3-Button Indoor Surface Mount Station (NEMA 1)

CPS-U – Commercial Photo Eyes

Commercial Accessories

RGL24LY – Red/Green Traffic Light

Dramatically reduces the chance of damage to your door and engine.
The light will change from flashing Red to solid Green when the door reaches the fully open position, indicating when it is clear to exit.

819LMB – myQ® Home Bridge

Add smartphone control to myQ-enabled products that don’t have built-in Wi-Fi.
Works with Apple® HomeKit™ and Siri® voice control.

LC-36A – Light Curtain

Provides up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe.
Eight LEDs per side and 22 cross-beams produce an invisible infrared light curtain for maximum detection capability.

813LM – Encrypted DIP Three-Button Remote Control

Programmable for Open/Close/Stop Operation.
Gives you a greater connection range.
Features Security+ 2.0® technology.

CPS-OPEN4 – Monitored Dual-Sided Photo Eyes

Flexible housing protects against direct water spray and corrosion.
Dual-Sided infrared sensors.
Meets UL 325 Safety Standards.

Fire Door Products – Providing Fail-Safe Performance

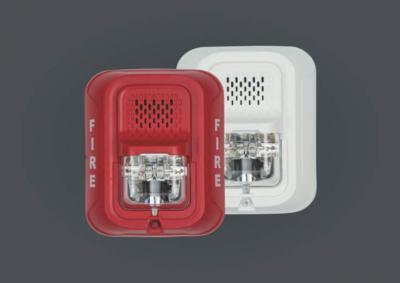

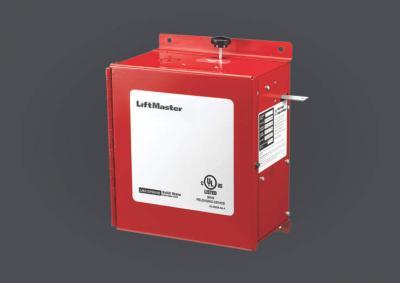

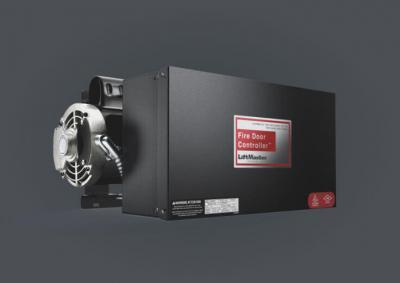

LiftMaster fire door operators, release devices, and accessories are designed to minimize property damage and provide increased safety for all building occupants. LiftMaster has the experience and knowledge to assist you in finding the perfect solution to meet your needs.

Enhanced Capabilities
