High Speed Commercial Doors for Emergency Service Facilities

Hörmann High-Performance Doors

Speed-Guardian™ 5000 Sereis

The Speed-Guardian™ 5000 is as functional as it is aesthetically pleasing. A fire station door can easily see 40 to 50 cycles per day. The Speed-Guardian’s fast opening speed of up to 80 IPS promotes fast exiting of emergency vehicles, ensuring efficient traffic flow. For optimum use of space, all track designs roll the door panel up and out of the way, allowing for large EMS vehicles to exit quickly.

Fast closing speeds secure the building and avoid unwanted entry. Doors with solid slats (standard color is RAL 9006) are constructed with galvanized, double-skinned insulated sections for an especially high level of thermal insulation (U-value = 1.04).

Optional RAL paint colors are available to match any building’s aesthetics.

Vision and track options

Double-pane vision slats include our exclusive  Duratec® window glazing, which guarantees maximum scratch resistance despite heavy use and cleaning. In addition to clear vision slats, all 5000 models have optional tinted / privacy vision slats available. Ventilated vision slats are also optional and specified when ventilation is desired. Low profile and low headroom track configurations are available for applications where clearance around the door opening is minimal.

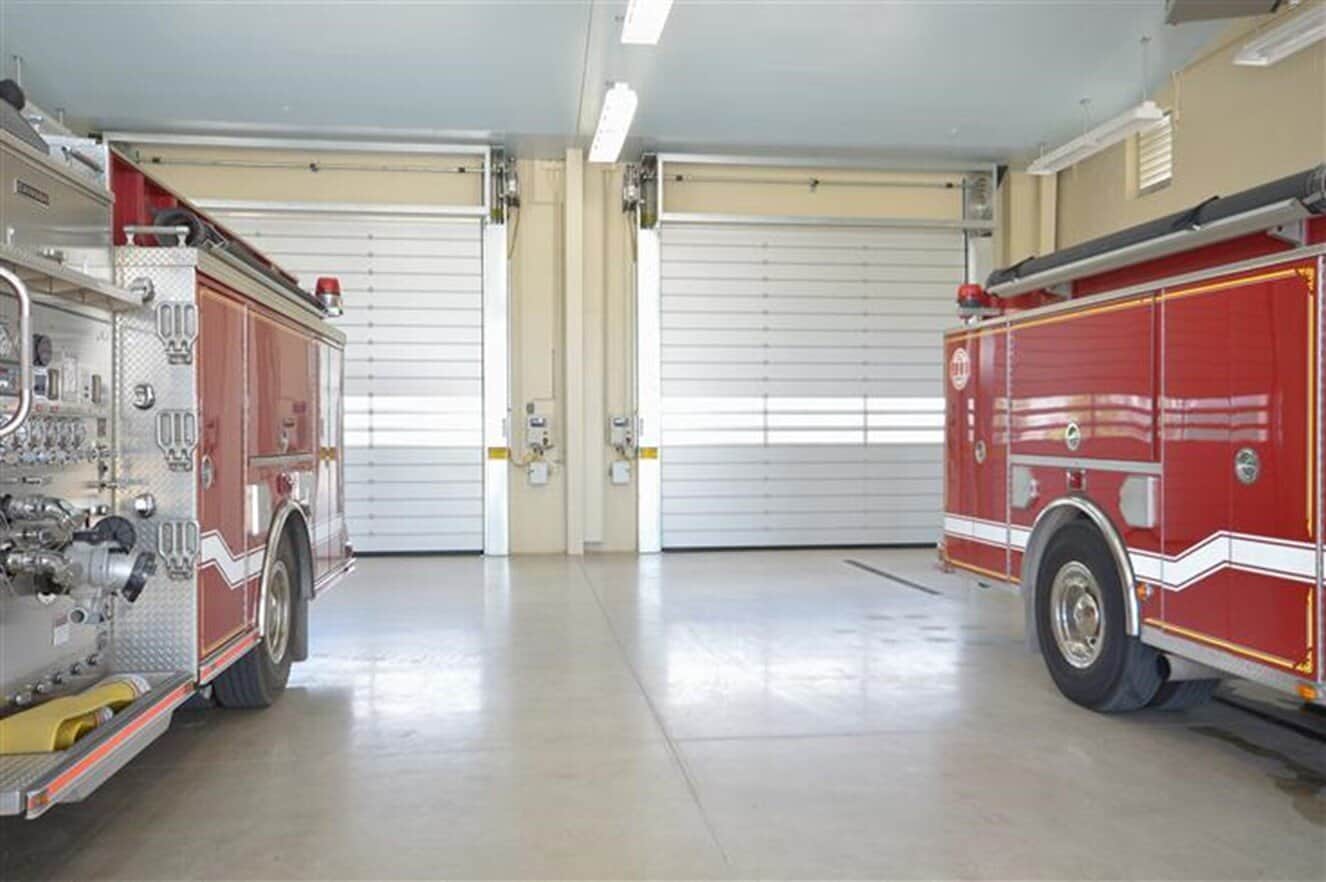

Speed-Guardian™ 5000 LH 42

Speed-Guardian™ 5000 C CV 42

Steel Ranger™  9500 LS

With direct-drive, springless operation, and fast operating speeds, the Steel Ranger™ 9500 LS is the model to choose as an alternative to traditional rolling steel doors in high cycle applications. Our springless design has few moving parts, which translates into maintenance-free operation. TheSteel Ranger’s compact footprint fits into even the most confined locations. The low headroom track design is available when applications have limited mounting space above the door opening.

Looks and functionality

Optional colors are available on the SpeedGuardian™ and Steel Ranger™ models (Any RAL color). A built-in guide track light curtain provides an invisible barrier r of protection for pedestrians and vehicles.

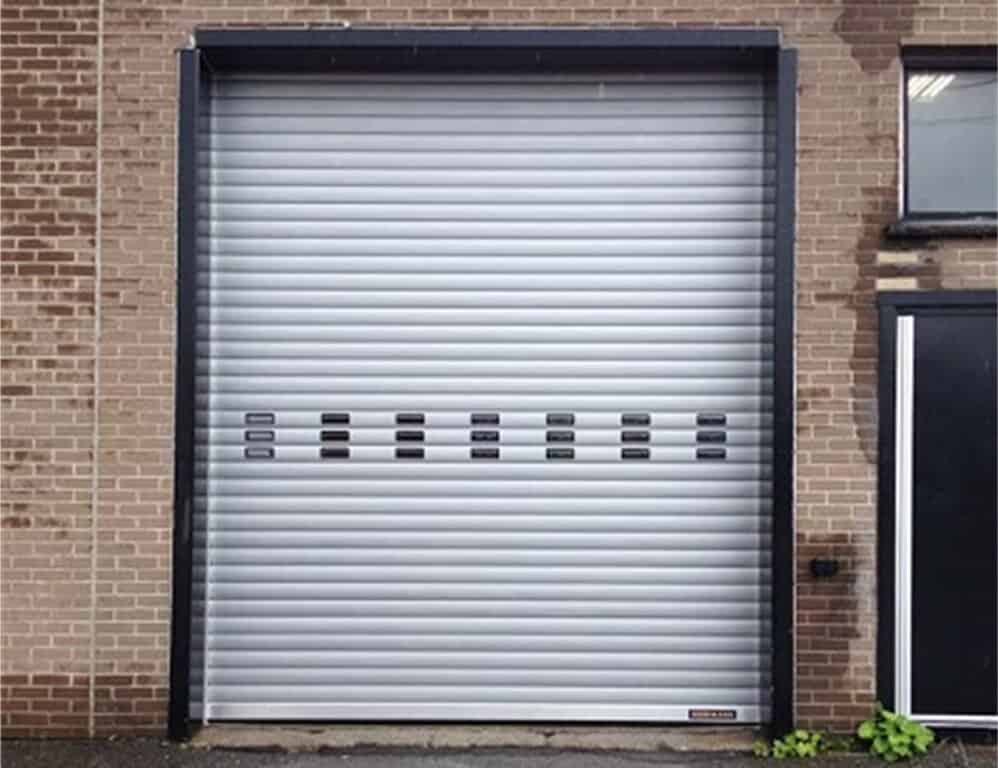

Steel Ranger™  9500 LS

Speed-Master® Series

When security is not required, this high-speed fabric door is the practical choice for high-cycle locations such as facility emergency and maintenance buildings.  A sectional panel design constructed of horizontal aluminum hinges and 90 oz. Bulldog XT panel material allows for easy replacement of individual panels if damaged.

Dependable and low maintenance

Design advantages like zero moving parts within the guide tracks and direct-drive motor support walk-away dependability. For exterior mounting doors, options like a roll and motor cover and a motor/gearbox heater make it possible to accommodate high traffic and exterior door applications during cold weather.

A standard built-in light curtain monitors the closing zone of the door up to a height of 8’0

Speed-Master® 1600 L

Speed-Master® 2600 L

Model HD-DD 3065

Direct Drive System (Hoods Optional)

Typical Applications

• Food & Beverage
• Logistics & Transportation

Overview

A springless direct drive system on a TNR rubber door provides a system that is simple to install, low maintenance, and performs well in rugged environments where high-speed operation is a must. Applications such as transit, airport and rail maintenance shops are ideal applications.

This high-speed, high-performance door system is particularly well suited for applications where high door speeds are required in openings that also experience very high traffic. Vehicle impacts are quickly reset, keeping traffic flowing in these demanding applications.

Features and Benefits:

• The HD-DD 3065 offers the full heavy-duty rubber door design for harsh, demanding environments.
• A variable frequency drive (VFD) provides a soft start and soft stop, ensuring smooth operation and extended life of the mechanical system.

Warranty

The direct drive design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation with:

• 5 years or 1,000,000 cycles on operators with VFD
• 2 years on all other mechanical components
• 2 years on electrical components

Model HD-DD 3025

Chain Drive System

Typical Applications

• Parking & Automotive
• Logistics & Transportation

Overview

This high-speed, high-performance door system is particularly well suited for applications where high door speeds are required in openings that also experience very high traffic. Vehicle impacts are quickly reset, keeping traffic flowing in these demanding applications.

Eliminating the counterbalance springs makes these TNR rubber doors extremely reliable in high-cycle environments.

Features and Benefits:

• The HD SERIES chain drive model HD-CD 3025 uses a high-performance helical gearhead operator and chain drive to open the door at up to 24 inches per second.
• A programmable PLC and VFD control this drive system with a soft start and soft stop that provides smooth, quiet operation, reduced wear-and-tear and long life.
• The versatile PLC controller allows quickly adding a wide range of activation and safety devices often required in high-traffic door applications.

Warranty

The chain drive springless design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation with:

• 5 years or 1,000,000 cycles on operators with VFD
• 2 years on all other mechanical components
• 2 years on electrical components

Overview

These extremely reliable doors are most valuable in the typically harsh environments of heavy industrial applications. These industries often require large doorways to accommodate large equipment, whereas the HD SERIES is ideal to fill the void left by other high-performance doors.

Both models, 3050 and 3020, are counterbalanced by standard springs rated for 100,000 or 50,000 cycles, depending on the door size. Upgrades for 200,000 cycles in higher traffic applications are available

Features and Benefits:

• A part of the HD SERIES chain drive sprung models is the high-speed HD-SD 3050 model, equipped with a high-performance helical gearhead operator to open the door at up to 48 inches per second.
• The HD-SD 3050 operator is controlled by a custom programmable PLC with a variable frequency drive (VFD) in a NEMA 4 enclosure for precision control and durability.

Warranty

The chain drive sprung design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation with:

• 5 years or 1,000,000 cycles on operators with VFD
• 2 years on all other mechanical components
• 2 years on electrical components

Model HD-SD 3050

High-Speed, Chain Drive, Sprung Drive System

Typical Applications

• Mining & Industrial
• Logistics & Transportation

Model HD-DD 2565

Direct Drive System (Hoods Optional)

Typical Applications

• Food & Beverage
• Logistics, Distribution & Transportation

 HD-DD 2565 Overview

A springless direct drive system on a TNR rubber door provides a system that is simple to install, low maintenance, and performs well in rugged environments where high-speed operation is a must. Applications such as transit, airport, and rail maintenance shops are ideal.

Features and Benefits:

• The HD-HD 2565 offers a hybrid alternative of a lighter rubber curtain or 88 oz fabric curtain.
• These provide speed and durability for less demanding environments while maintaining all TNR’s direct drive system benefits.

Warranty

The direct drive design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation with:

• 5 years or 1,000,000 cycles on operators with VFD
• 2 years on all other mechanical components
• 2 years on electrical components
