Poweramp Mechanical Dock Levelers
Poweramp Mechanical Dock Levelers are an economical solution to basic applications while still providing strength and durability. These levelers use a pull chain activation to raise the deck. The operator then simply walks the deck back down to the trailer bed or to a stored position. Poweramp mechanical levelers are equipped with a Lip Drive positive lip extension and an extended range, hold down mechanism for extreme float conditions.
Maximize Safety & Efficiency with Poweramp Mechanical Dock Levelers
Poweramp Poweramp Mechanical Dock Levelers
Mechanical Dock Levelers are an Economical & Reliable Solution For Basic Applications.
Operation begins when a dock attendant manually pulls the release chain, lifting the leveler from the stored position. Then A Cam Control Counter Balance Assembly raises the leveler, and a fully yieldable hinged lip is automatically extended at the top of the upward travel.
The attendant walks the platform down onto the trailer bed. If the trailer bed is below dock level, the attendant activates a second pull chain at the platform’s front during the walk down. The operating range is 12” above and 12” below dock level. The platform is designed to compensate for canted truck beds up to 4” and remain flush with the dock floor. An automatic release feature protects the device under extreme float conditions common when “air-ride” suspension trailers are serviced.
Safety Features:
- Dual pivoting cross-traffic legs for multi-position safety in the event of early departure.
- Working range toe guards close offsides in the service range position.
- Built-in lockout/Tagout maintenance inspection strut and lip support.
- Lip keepers for cross-traffic support and automatic night lock security against theft.

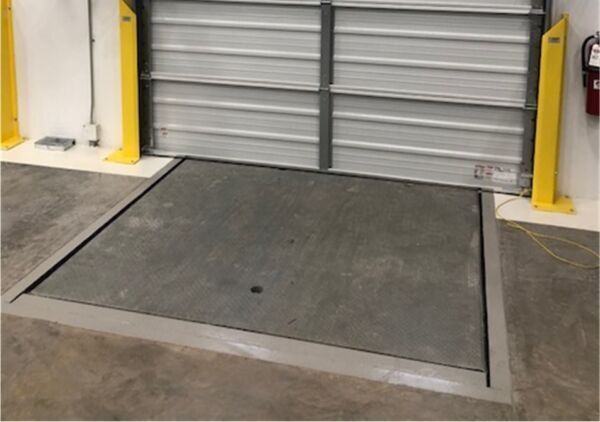

HM Series Mechanical Leveler
When size does matter, choose Poweramp’s® HM Series heavy-duty mechanical loading dock leveler. The HM Series provides exceptional structural superiority for heavy-duty applications with 29 inches of direct rear hinge support and a high-strength deck constructed of a combination of structural steel “C” channels and “I” beams.
The HM Series is designed for heavy-duty applications. Max Standard Width – 7′ and Max Standard Length – 10′
Features
- Made in the USA
- Manual Activation
- Mechanical operation
- 30,000 – 50,000 CIR
- Structural steel and four-sided box construction
- Piano-style front and rear hinges
- Multi-spring centrally located off pit floor
- Mechanical Lip Operation
- Optional sliding toe guards
- Cam control counterbalance
Construction
The HM Series is designed for heavy-duty applications and has a maximum Comparative Industry Rating (CIR) of 50,000 lbs. All Poweramp Levelers are built with durable four-sided box construction. Structural steel C channels or I beams create more deck support than other levelers.
HM Series Levelers come in 6’, 6’6”, & 7’ standard widths and 6’, 8’, & 10’ standard lengths. Other lengths may be available. Standard capacities for the HM Series are 30K, 35K, 40K,45K, & 50K CIR (Comparative Industry Rating).
Model |
Nominal Size |
|---|---|
| HM-66 | 6′ x 6′ |
| HM-68 | 6′ x 8′ |
| HM-610 | 6′ x 10′ |
| HM-612 | 6′ x 12′ |
| HM-656 | 6’6″ x 6′ |
| HM-658 | 6’6″ x 8′ |
| HM-6510 | 6’6″ x 10′ |
| HM-6512 | 6’6″ x 12′ |
| HM-76 | 7′ x 6′ |
| HM-78 | 7′ x 8′ |
| HM-710 | 7′ x 10′ |
Design Features
Cleansweep Frame
The CleanSweep Frame makes cleaning the dock pit easy and efficient.
Four-Sided Box Construction
Stronger, more durable four-sided box construction
This leveler utilizes all structural steel support members providing the most reliable support and strongest bridge.
Extended Range, Float Barrel Hold Down
Designed to operate under extreme float conditions common with “air ride” suspension trailers. Provides fingertip release of the leveler, making storing the unit a snap.
Lip Drive Positive Lip Extension (TM
Reliably extends the leveler’s lip and restricts its descent until a walk down is performed.
Safety Features:
- Dual pivoting cross traffic legs for multi-position safety in the event of early departure.
- Working range toe guards close off sides in the service range position.
- Built-in lockout/tagout maintenance inspection strut and lip support.
- Lip keepers for cross traffic support and automatic night lock security against theft.
Vehicle Restraints & Accessories
For a safer loading dock, all Poweramp levelers can be equipped with a light communication system, iDock Controls, and vehicle restraints, which help prevent unexpected trailer departure from the loading dock. Safety barriers also prevent forklift trucks from driving over the dock edge.
LMP Series Mechanical Leveler
Poweramp® has value engineered its line of mechanical levers to produce the LMP Series Mechanical dock leveler. The LMP Series incorporates the manufacturing efficiency of the “Lug Hinge” deck design with standard box construction to produce a reliable, economical mechanical dock leveler. Max Standard Width – 7′ and Max Standard Length – 8′
Features:
- Made in the USA
- Manual Activation
- Mechanical operation
- 25,000 – 40,000 CIR
- Four-Sided box construction
- Lug style front hinge and piano style rear hinge
- Multi-spring centrally located off pit floor
- Mechanical Lip Operation
- Optional sliding toe guards
- Cam control counterbalance
Construction
The LMP Series is a reliable, yet economic mechanical leveler that has been value engineered to accommodate basic applications. It has a maximum Comparative Industry Rating (CIR) of 40,000 lbs. All Poweramp Levelers are built with durable four-sided box construction. The deck is supported by 6” C channels on the 25k and 35k CIR units and 6” structural channels on the 40k CIR unit.
LMP Series levelers come in 6’, 6’6”, & 7’ standard widths and 6’, & 8’standard lengths. Other lengths may be available upon request. Standard capacities for the LMP Series are 25K, 35K, & 40K CIR (Comparative Industry Rating).
Model |
Nominal Size |
|---|---|
| LMP-66 | 6′ x 6′ |
| LMP-68 | 6′ x 8′ |
| LMP-610 | 6′ x 10′ |
| LMP-612 | 6′ x 12′ |
| LMP-656 | 6’6″ x 6′ |
| LMP-658 | 6’6″ x 8′ |
| LMP-6510 | 6’6″ x 10′ |
| LMP-6512 | 6’6″ x 12′ |
| LMP-76 | 7′ x 6′ |
| LMP-78 | 7′ x 8′ |
Design Features
Cleansweep Frame
The CleanSweep Frame makes cleaning the dock pit easy and efficient.
Pull Chain Activation
A simple pull of the chain ring located in the leveler deck raises the unit for use.
Four-Sided Box Construction
Stronger, more durable four-sided box construction
This leveler utilizes all structural steel support members providing the most reliable support and strongest bridge.
Extended Range, Float Barrel Hold Down
Designed to operate under extreme float conditions common with “air ride” suspension trailers. Provides fingertip release of the leveler, making storing the unit a snap.
Lip Drive Positive Lip Extension (TM
Reliably extends the leveler’s lip and restricts its descent until a walk down is performed.
Safety Features:
- Dual pivoting cross traffic legs for multi-position safety at the stop.
- Full range telescoping toe guards close offsides even in the highest position.
- Built-in lockout/tagout maintenance inspection strut.
- Lip keepers for cross traffic support and automatic night lock security against theft.
Vehicle Restraints & Accessories
For a safer loading dock, all Poweramp levelers can be equipped with a light communication system, iDock Controls, and vehicle restraints, which help prevent unexpected trailer departure from the loading dock. Safety barriers also prevent forklift trucks from driving over the dock edge.
